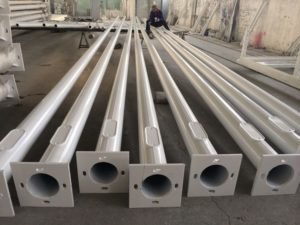

CONICAL POLES
To meet divergent demands of the clients in an efficient manner; we bring forth Conical Lighting Pole. These are available with us in different lengths. The provided poles and appreciated for their easy installation, sturdy construction, and optimum performance. We ensure the best price and timely delivery of our product.
| SL.
NO |
HEIGHT (M) | TOP DIAMETER (A/F)MM | BOTTOM DIAMETER (A/F)MM | SHAFT THICK (T)MM | BASE PLATE | FOUNDATION BOLT(EN 8 GRADE) | |||
| DIMENSIONS (LXBXT) MM | JBOLT (NOS.XDIA.(MM) | PITCH CIRCLEDIA (PCD)MM | BOLT LENGTH (MM) | PROJECTED BOLT LENGTH(MM) | |||||
| 1 | 3 | 75 | 105 | 3 | 200X200X12 | 4X16 | 200 | 450 | 80 |
| 2 | 4 | 75 | 115 | 3 | 200X200X12 | 4X16 | 200 | 600 | 80 |
| 3 | 5 | 75 | 125 | 3 | 200X200X12 | 4X16 | 200 | 600 | 80 |
| 4 | 6 | 75 | 135 | 3 | 220X220X12 | 4X20 | 210 | 600 | 100 |
| 5 | 7 | 75 | 145 | 3 | 220X220X13 | 4X20 | 235 | 700 | 100 |
| 6 | 8 | 75 | 155 | 3 | 220X220X14 | 4X20 | 235 | 750 | 100 |
| 7 | 9 | 75 | 165 | 3 | 260X260X16 | 4X24 | 270 | 850 | 125 |
| 8 | 10 | 75 | 175 | 3 | 260X260X16 | 4X24 | 270 | 850 | 125 |
| 9 | 11 | 85 | 195 | 3 | 260X260X16 | 4X24 | 300 | 850 | 125 |
| 10 | 12 | 96 | 216 | 3 | 260X260X16 | 4X24 | 300 | 850 | 125 |
